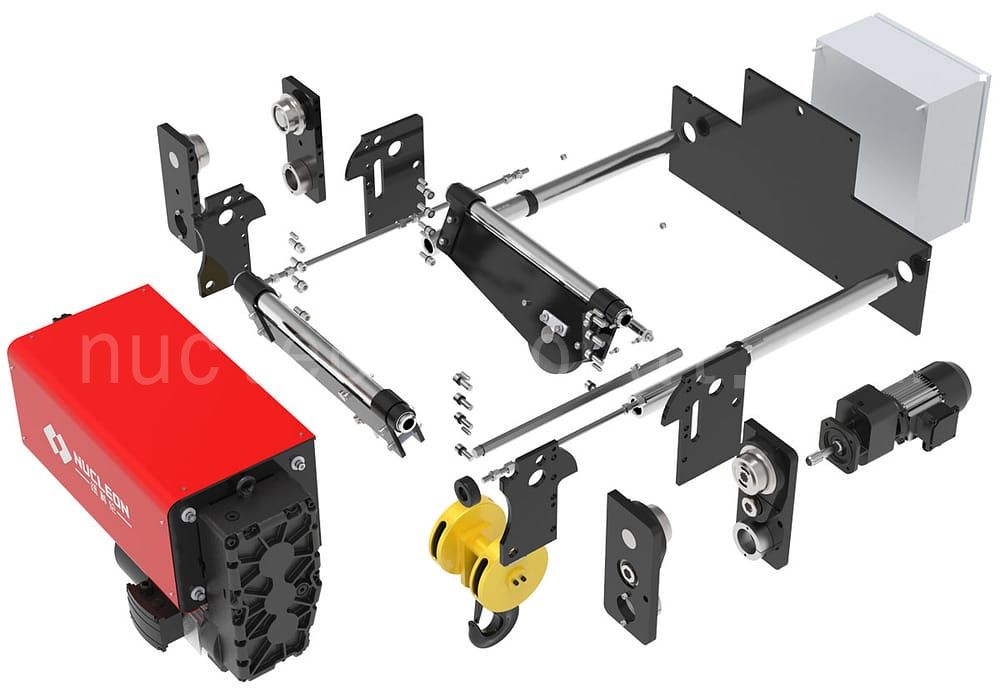

DESCRIPTIONModular Design Concept, Flexibility

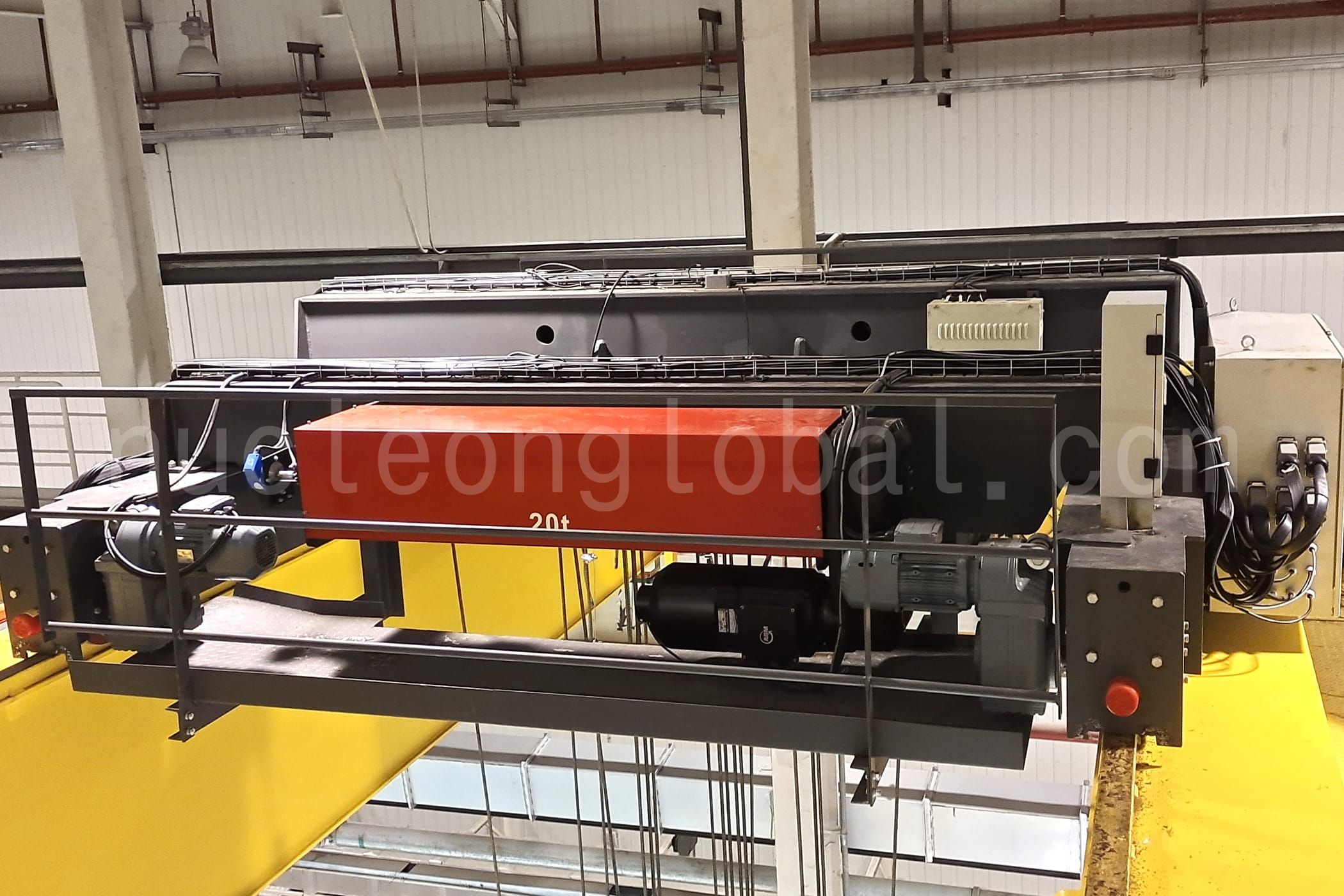

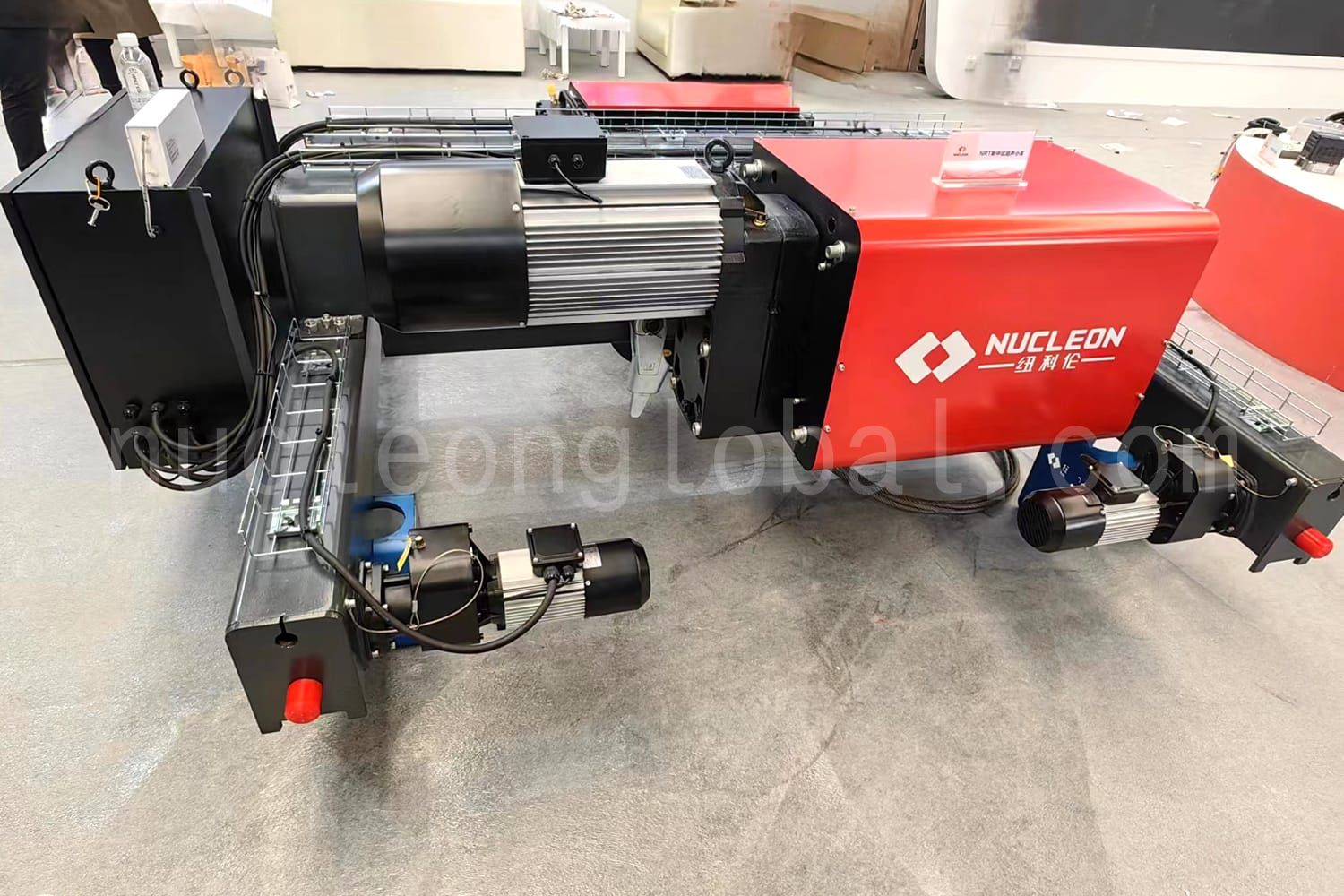

Electric wire rope hoist adopts the company's original space rod support structure, the lifting device adopts the classic "C" type structural arrangement, the lifting drive device drives the large-diameter reel group, the coaxial three-in-one drive device drives the double-side wheel group at the same time, the rope wedge device and the pulley group are suspended in the support rod, the use of high-strength nylon pulley group and hook group.
NR electric hoist with modular structure can fully meet your requirements which owns unprecedented flexibility and can provide you with perfect solutions for personalized needs.
Strong Versatility of Spare Parts:
- Five kinds of Wheel Sets
- Four kinds of Hoisting Gear Motor
- Four kinds of Travelling Gear Motor
PRODUCT FEATURESIntelligent safety monitoring system has the advantage as follows
- Calculating the remaining safety cycle of lifting mechanism
- Brake safety operation times
- Accumulated starts times of hoisting and travelling
- Records the load tonnage
- Overload protection, prohibit users from illegal overloading operations
- Real-time monitoring of crane's operating Power Supply
- Motor overheat protection
- Extensible wireless access point, it can access to user's big data center monitoring management, so as to realize remote operation and maintenance

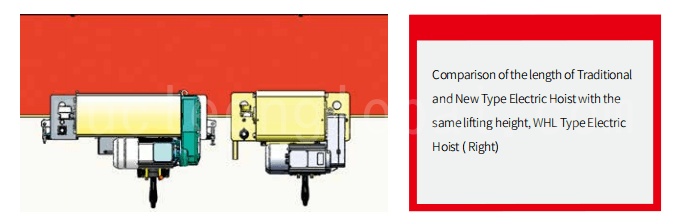

Product AdvantagesLow Headroom and Compact Design Concept
All series Electric Hoist are equipped with large diameter drum, which can effectively increase the lifting height and reduce the left and right limits. Crane's dead zone when working becomes smaller, which can provide larger using space for the customers.
Product AdvantagesRugged and Safe Design Concept
- The whole machine passed the national standard life test (1600 hours)
- The service life of electrical components is not less than 500,000 times
- The safe use of brake reaching 1 million times
- The breaking force of the wire rope reaching grade 2160
- The hook adopts high-strength T-class hook head
- 10 years free maintenance of speed reducer
Zero Speed Hover
Ensure that the crane moves slowly and accurately as it approaches its destination.
Electric Anti-sway Function
Can automatically limit the sway of the loader in the process of handling, faster handling and more accurate positioning.
Multi-hook Coordination
Monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed.
Dead Slow
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading.
Multi-trolley Synchronization
Position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
Speed Expansion Function
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
