2 juegos de grúas aéreas de 10 toneladas instaladas en el taller del cliente de Brasil

2025-03-18

We recently installed two 10-ton overhead cranes for a customer in Latin America. The client, active in the metal fabrication industry, reinforced their workshop columns in advance to ensure stable crane operation and better load-bearing capacity.



Before installing the crane, the customer reinforced the existing columns in the workshop to better bear the load.  The two complete cranes, all runway beams, and square steel rails in the workshop were all purchased from us.



The main technical parameters of the two 10 ton cranes is as follows:

  • Span: 23.55m
  • Lifting height:6.5m
  • Lifting speed: 8.4/0.84m/min (Double speed)
  • Trolley traveling speed: 2.4-24m/min  (VFD)
  • Crane traveling speed: 3.6-36m/min  (VFD)
  • Voltage: 220v, 60hz,3 phase
  • Work group: A4
  • Crane wheel diameter: ∅250
  • Hoist model:MD model

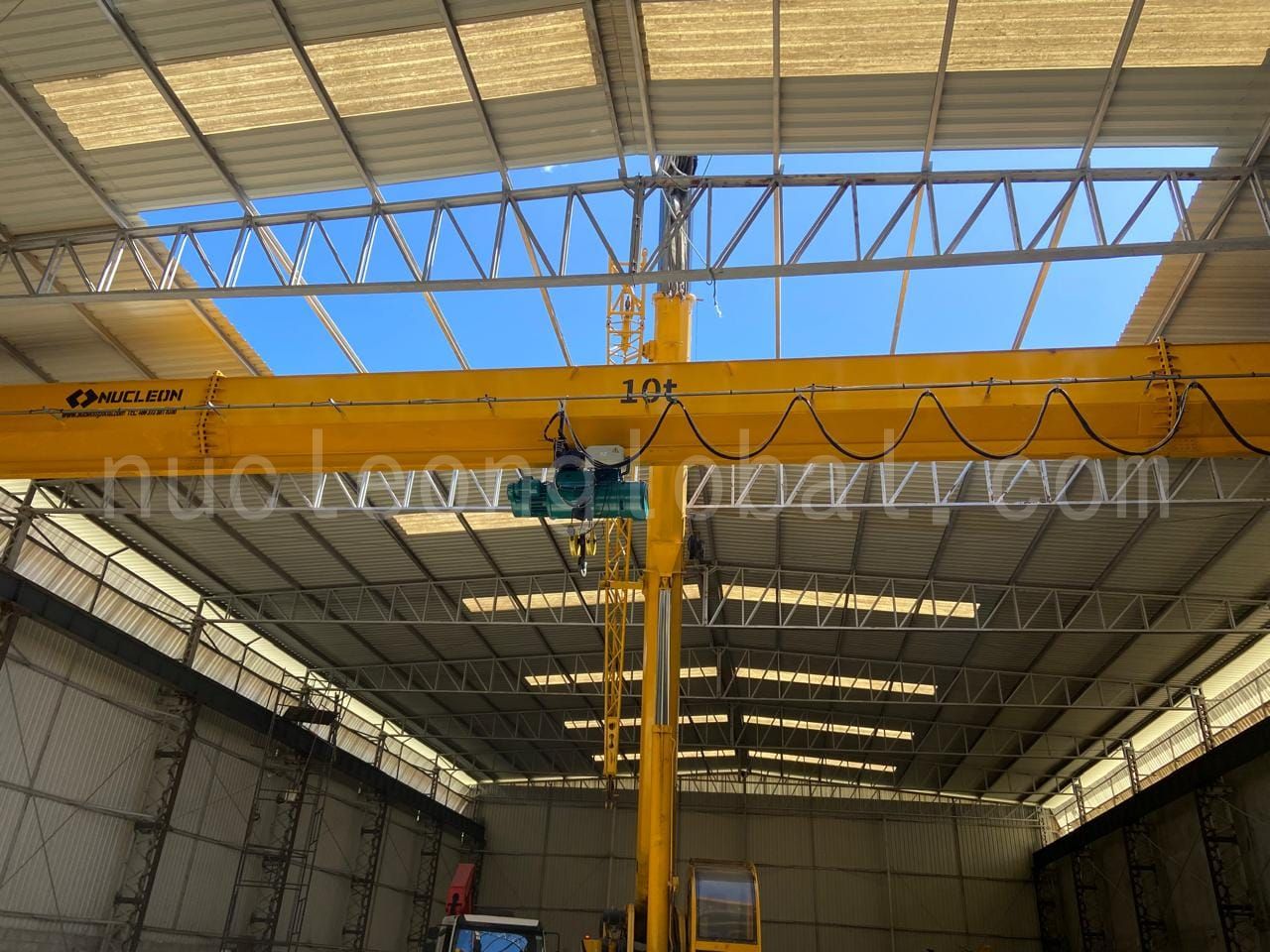

The following are some pictures and video of customer installation sites.

Ton Overhead Cranes
