Load capacity: 12.5t
Crane span: 25m
Over hang: 7.5m+7.5m
Lifting height: 8m
Control mode: wireless remote control
Power source: 380 V/60 Hz/3 Phase
Work duty: A3
QTY: 1 set
Country: Russia
This gantry crane will be used in the customer's factory. We designed the lifting height and span according to the usage described by the customer.
This crane is used by customers to load and unload trucks outdoors. Raw materials need to be unloaded from trucks to designated locations. Customers want the lifting speed to be as fast as possible, so we designed a lifting speed of 8 meters per minute.
As we all know, the standard speed of our crane is 3.5 meters per minute under a load of 12.5 tons, so the electric hoist of this crane is customized according to customer needs. Let its lifting speed meet 8 meters per minute.
Because the speed becomes faster, the force on steel structure components such as the main beam and outriggers will be greater. Therefore, although the capacity of this crane is 12.5 tons, it is improved based on the steel structure of a 20-ton crane, thereby ensuring the safety and efficiency of customers using the crane.

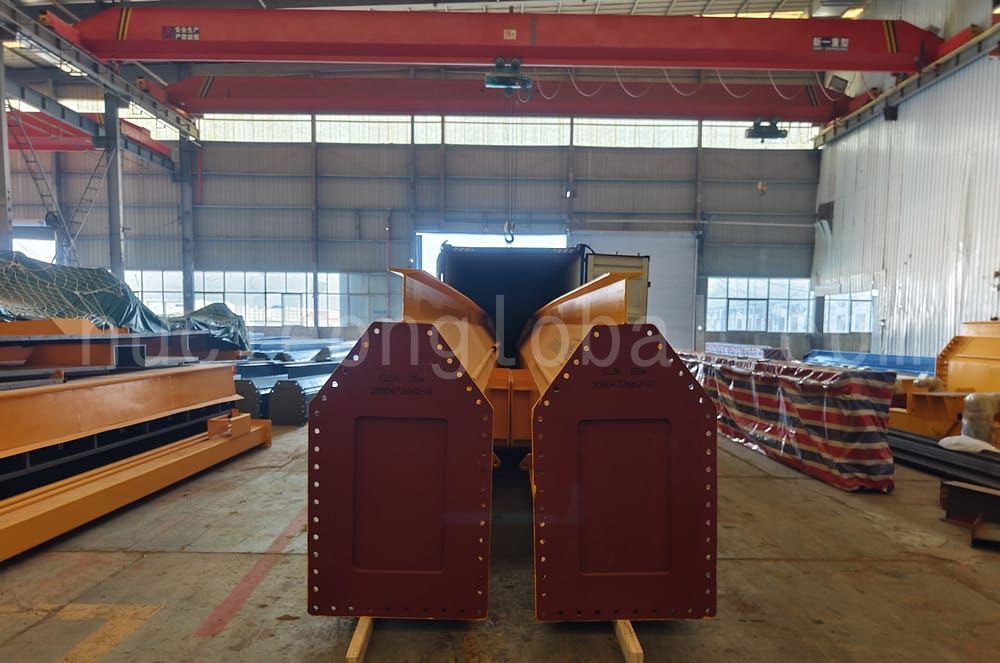

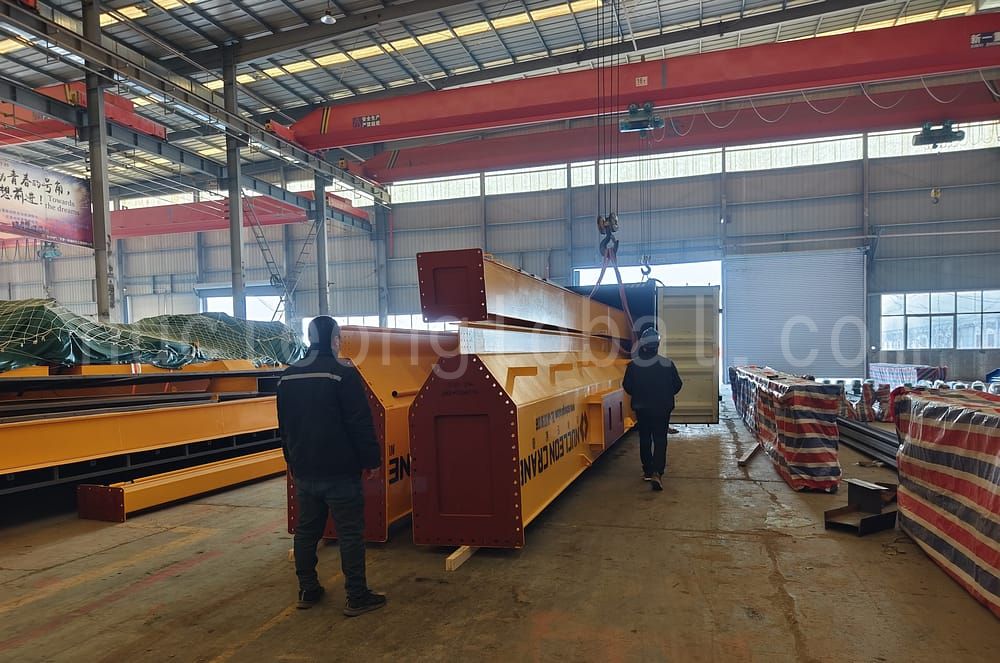

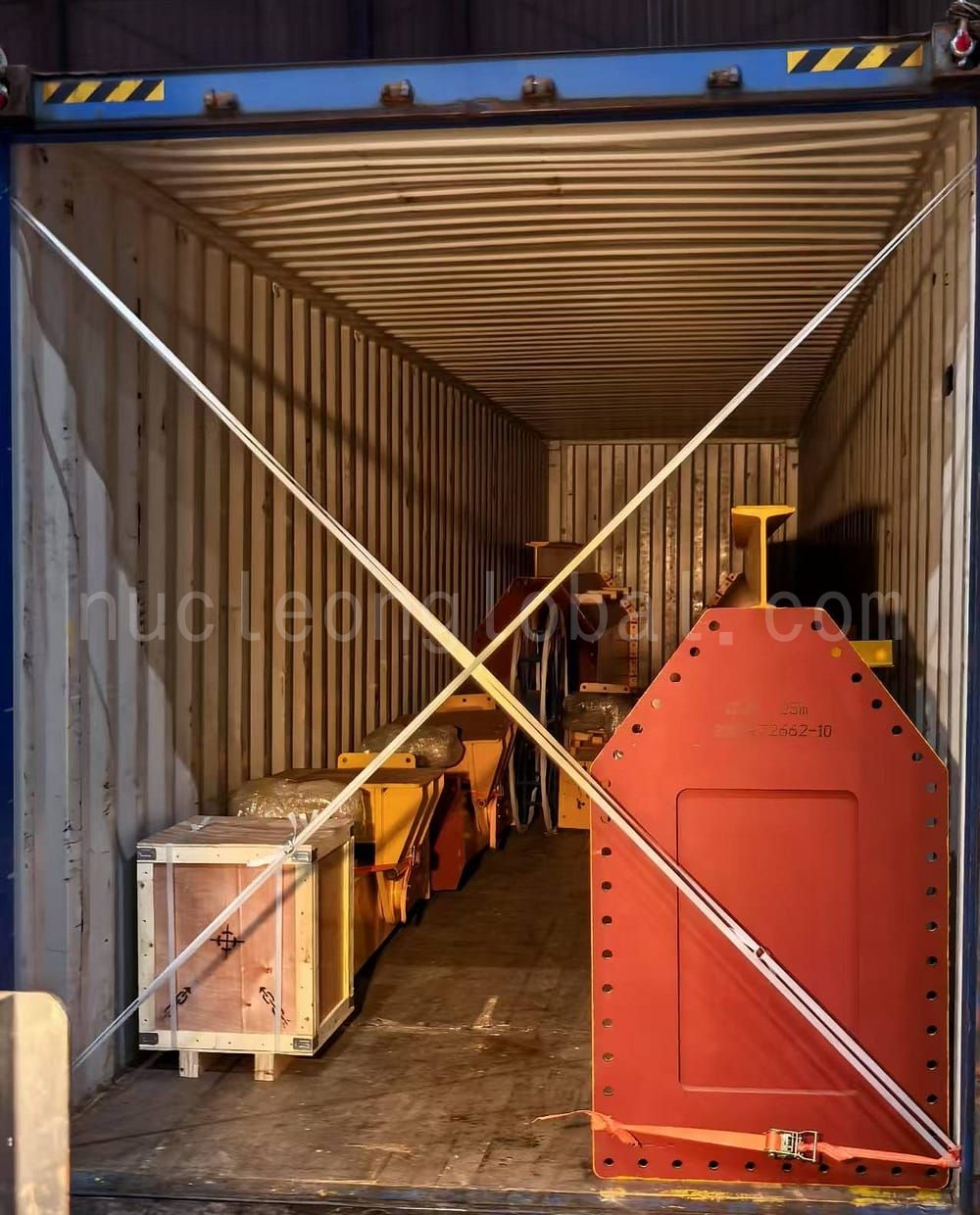

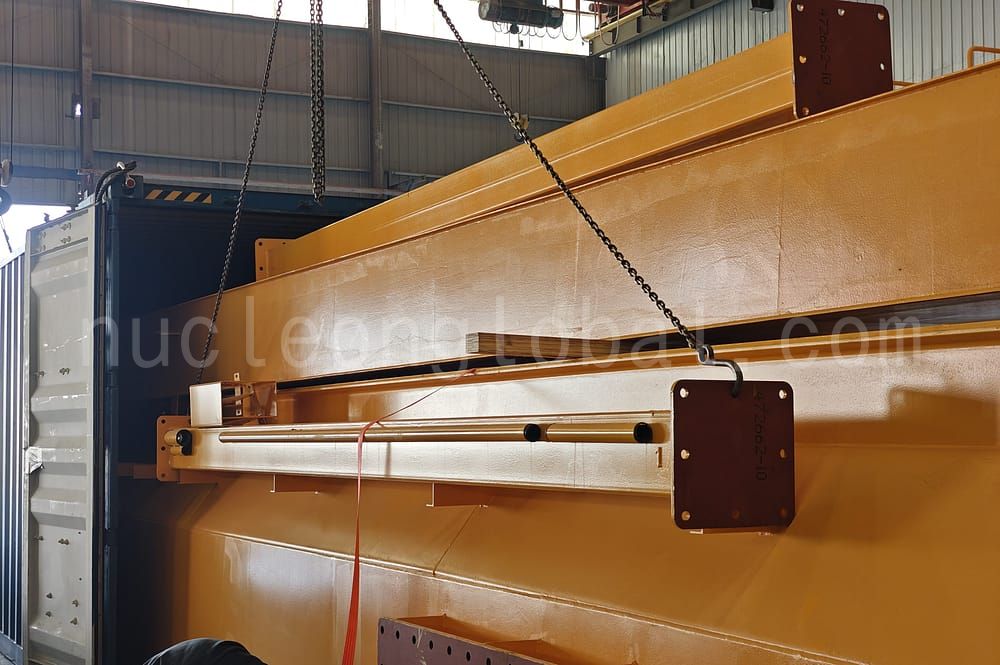

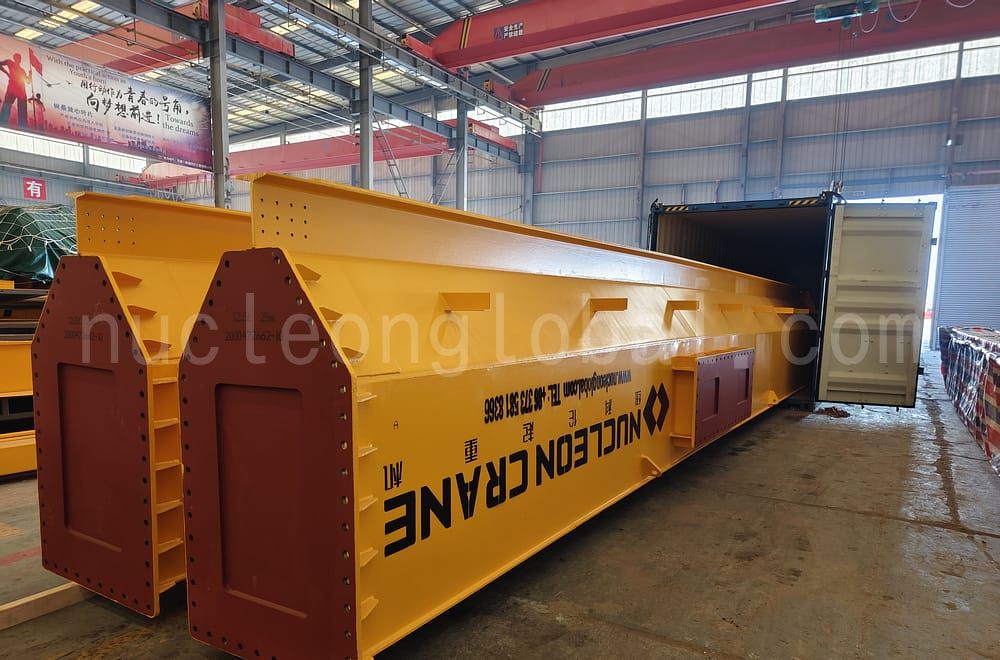

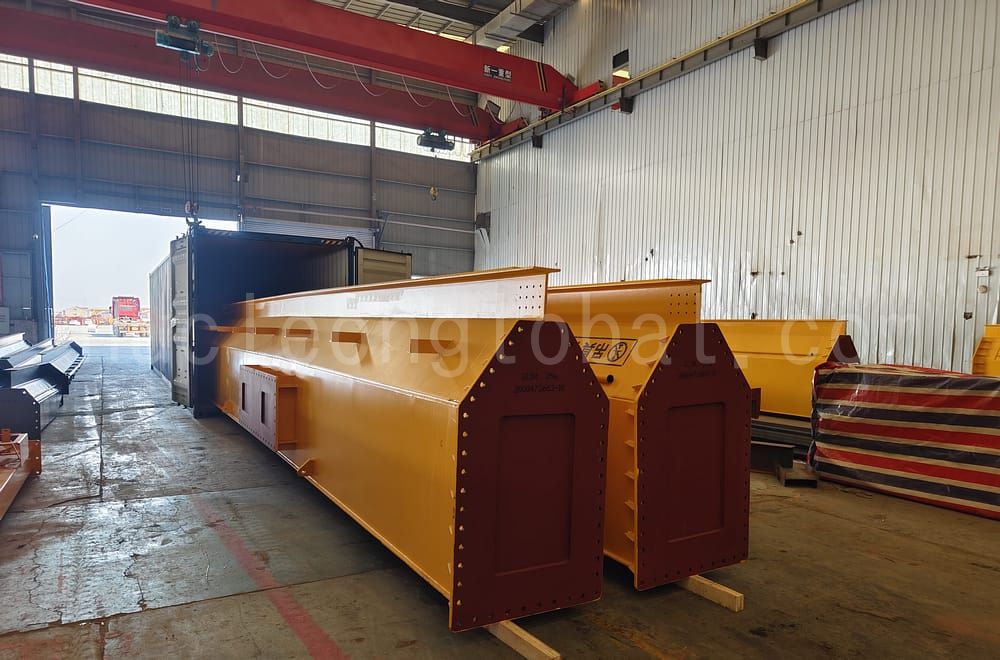

The following are some loading and packaging photos.
