32T LD Single Girder Overhead Crane
Used in paper mills
Changsha,Hunan,China
Product: 32ton LD Type Single Girder Overhead Crane;
Lifting Weight: 32T
Crane span Length: 33m
Lifting Height: 12m
Lifting mechanism: 32t electric wire rope hoist
Lifting speed: 3/0.3m/min
Trolley traveling speed:20m/min
Crane traveling speed: 20m/min
Control mode: Wireless remote control & Cabin control
Duty group: A3
Working voltage:380V 60HZ 3Ph

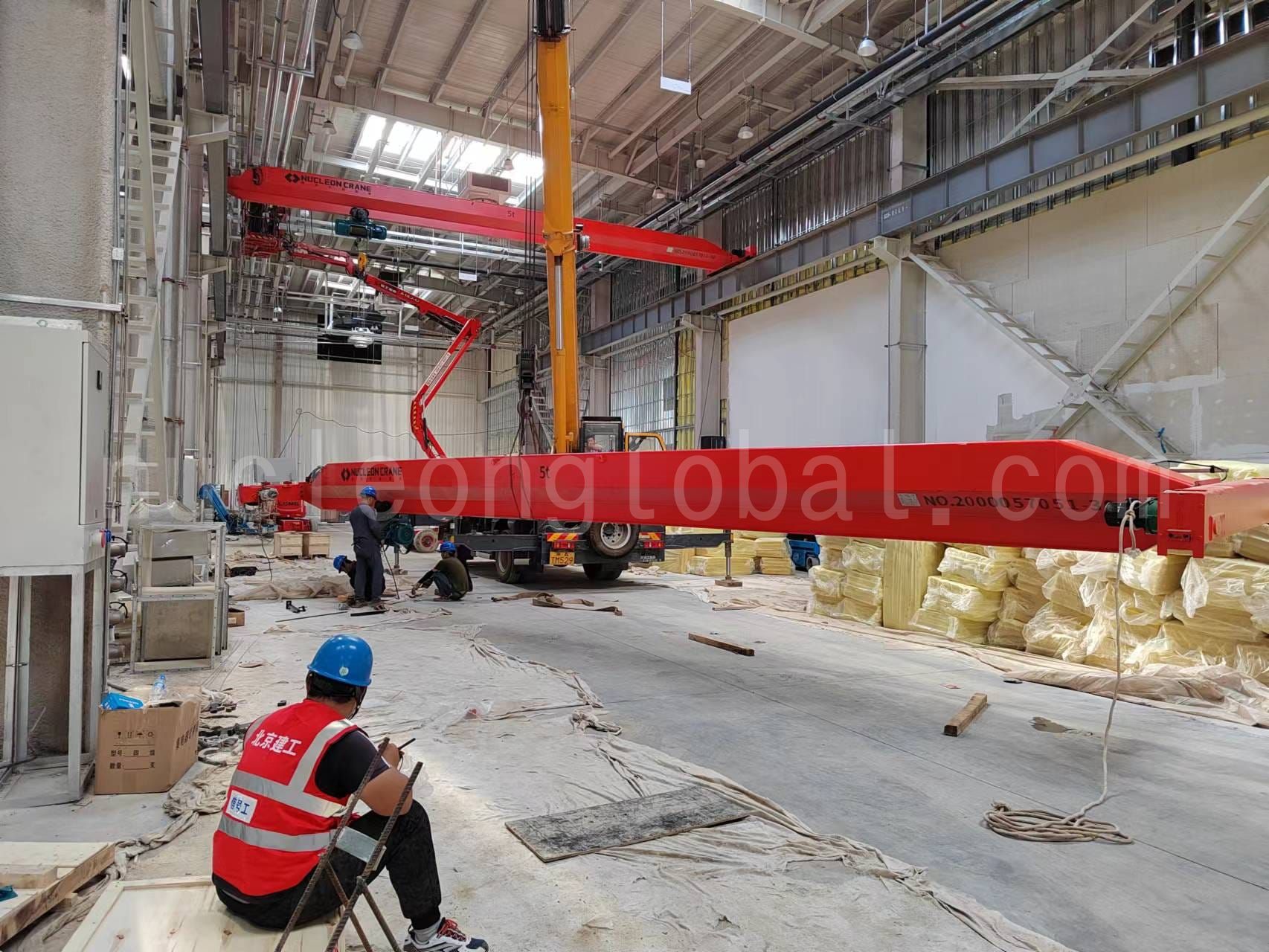

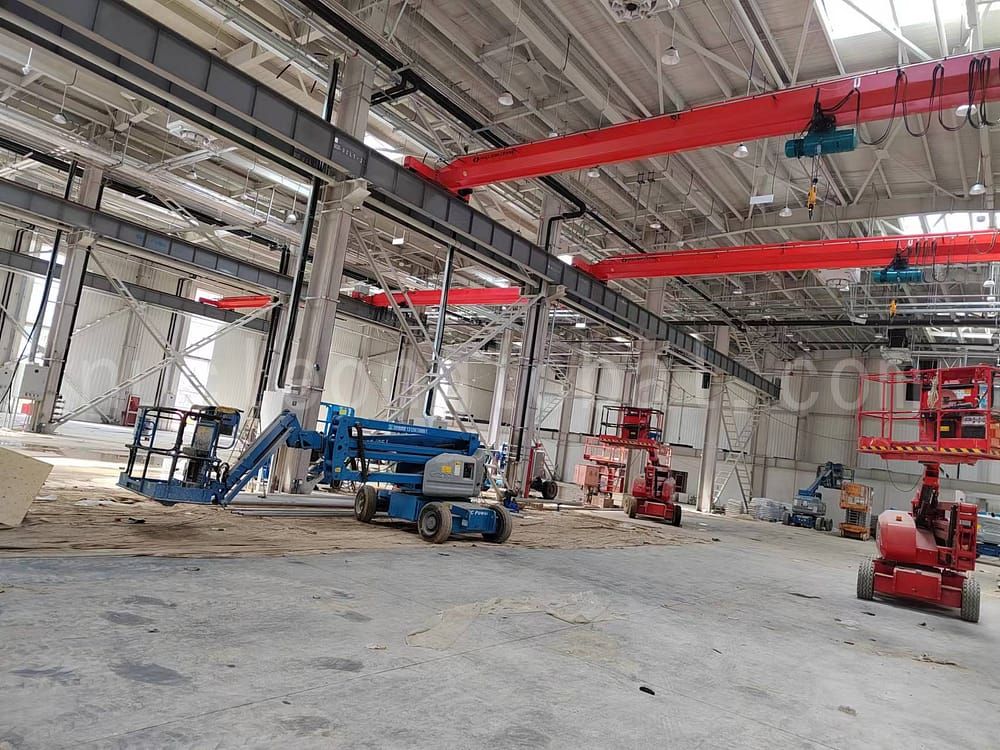

When this customer's project was brought to us, we considered using a double girder crane. Not only is the lifting capacity large, but the span is also huge a full 33 meters. General manufacturers with single girders may not be able to produce them. However because the customer is the design institute finalized drawings, cannot be changed. We also try our best to design a crane with a single girder structure, the following pictures show the installation process and the effect of these two cranes.
Crane is a customized product, if you have an inquiry on our product, please send us your requirements and specifications, more detailed is better, so that we can design the most suitable design and precise offer for your project!
