16 ton and 20 ton double girder overhead travelling cranes
Used to carry pipe piles
Xinjiang, China
- Nucleon Crane Recommended Products
- Product: 8t+8t Overhead Double Girder Crane for Pipe Pile （with hook and Specialized Pipe Pile Spreader)
- Safe working load: 8+8T,12.5+12.5T,16+16T,20+20T,25+25T(Can be customized according to actual requirements)
- Lifting Height: 12m
- Working Class：A6
- Span:20m
- Lifting speed: 0.58-5.8m/min
- Cross traveling speed: 2.4-24m/min
- Crane traveling speed: 3-30m/min
- Power source: 380V/50Hz/3ph
- Control mode: Wireless remote control
- QTY: 2sets-----20t (10t+10t) *1set and 16t (8t+8t) *1set
Recently, Xinjiang Nongliushi Coal and Electricity Co., Ltd. ordered a batch of overhead double girder cranes for pipe piles from NUCLEONCRANE. Now successfully delivered and put into use. The company is a set of electrolytic aluminum, aluminum processing, power generation is equal to the integration of modern enterprises. Marks the company in the photovoltaic industry NUCLEONCRANE more progressive.
The crane is mainly composed of bridge, large and small car running mechanism, spreader, intelligent electronic control system, etc. It adopts heavy-duty structure, which has the characteristics of strong, durable, large load-bearing capacity, etc. It can be applied to a variety of harsh working conditions, and the double trolley structure of the crane can work alone and coordinate work at the same time, which greatly improves the operating efficiency.
Here is the advantage for Overhead Double Girder Crane for Pipe Pile design:
1、Flexible and convenient
The crane adopts laser distance measurement between double trolleys, which can ensure that the error of synchronized operation of trolleys can be controlled at ±5mm; the spacing of adapted lifting points is flexible and diverse; the spreader and double trolley lifting points adopt flexible connection, which is convenient for quick replacement.
2、Smooth lifting and lowering
The crane lifting mechanism is installed with high-precision sensors for real-time monitoring, realizing smooth lifting and lowering of double lifting points and small synchronization error.
3、Safe and reliable
The crane adopts high-quality parts, low maintenance, long service life; the whole machine adopts frequency conversion speed control, smooth starting and braking, safe and reliable.

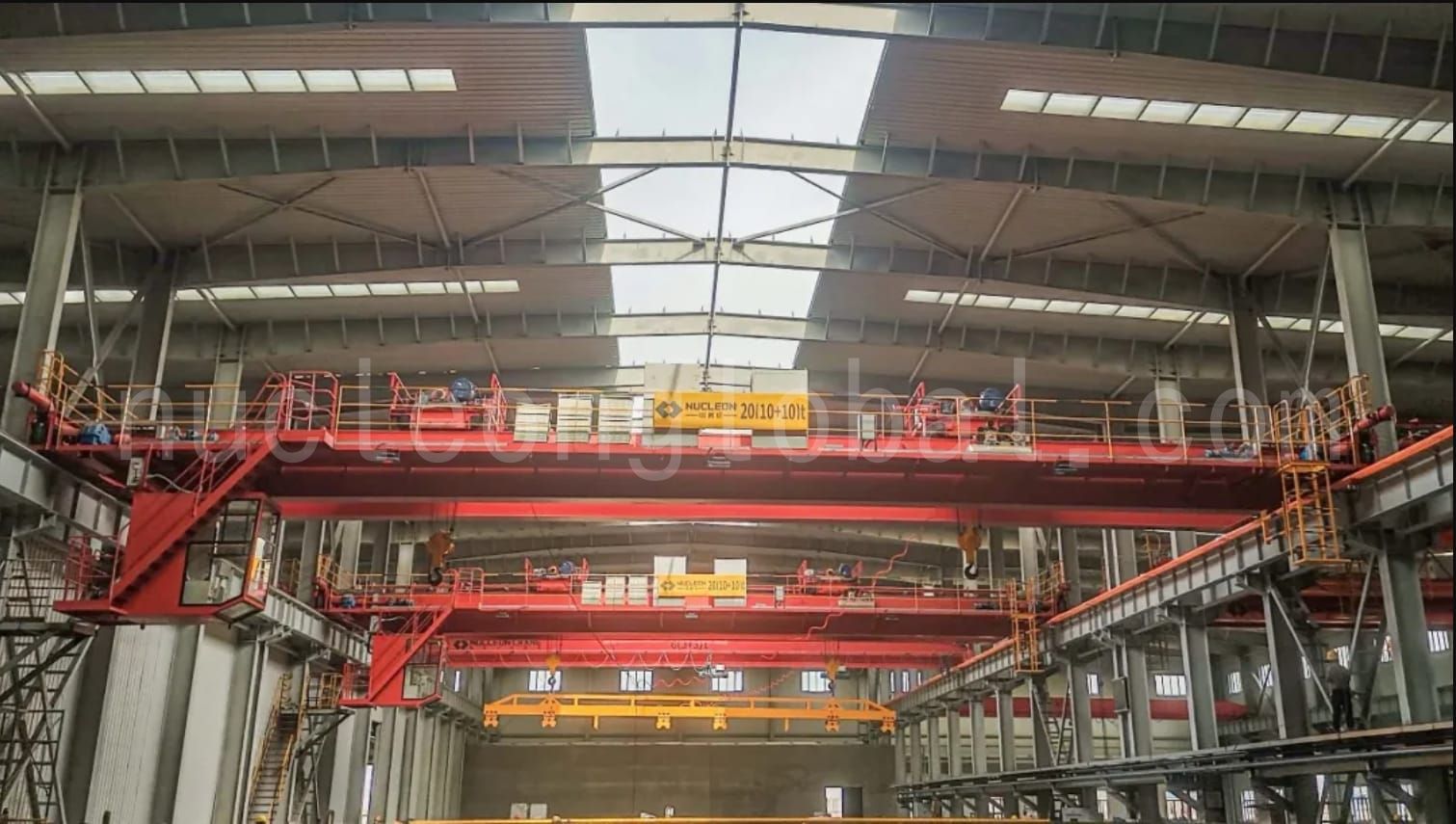

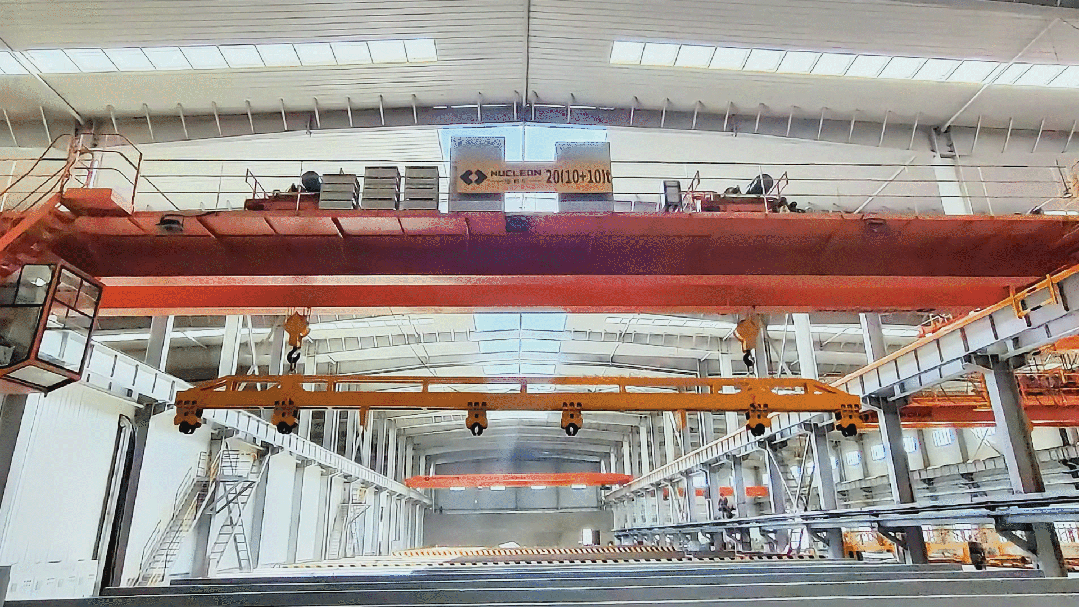

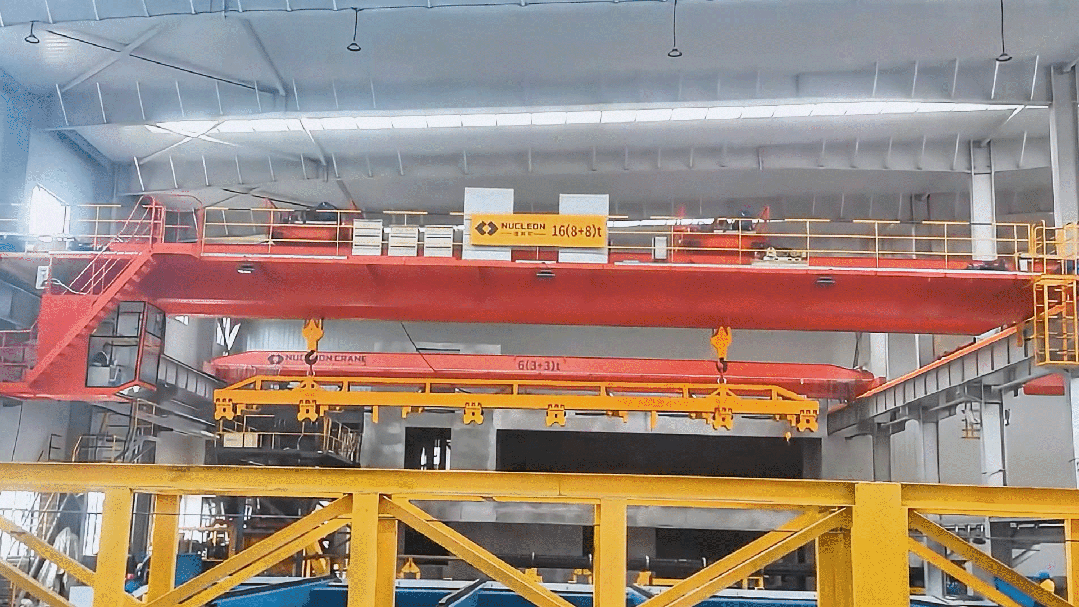

Below are the finished product pictures and crane running pictures.
