DESCRIPTIONStandard Modular Design, Compact Structure

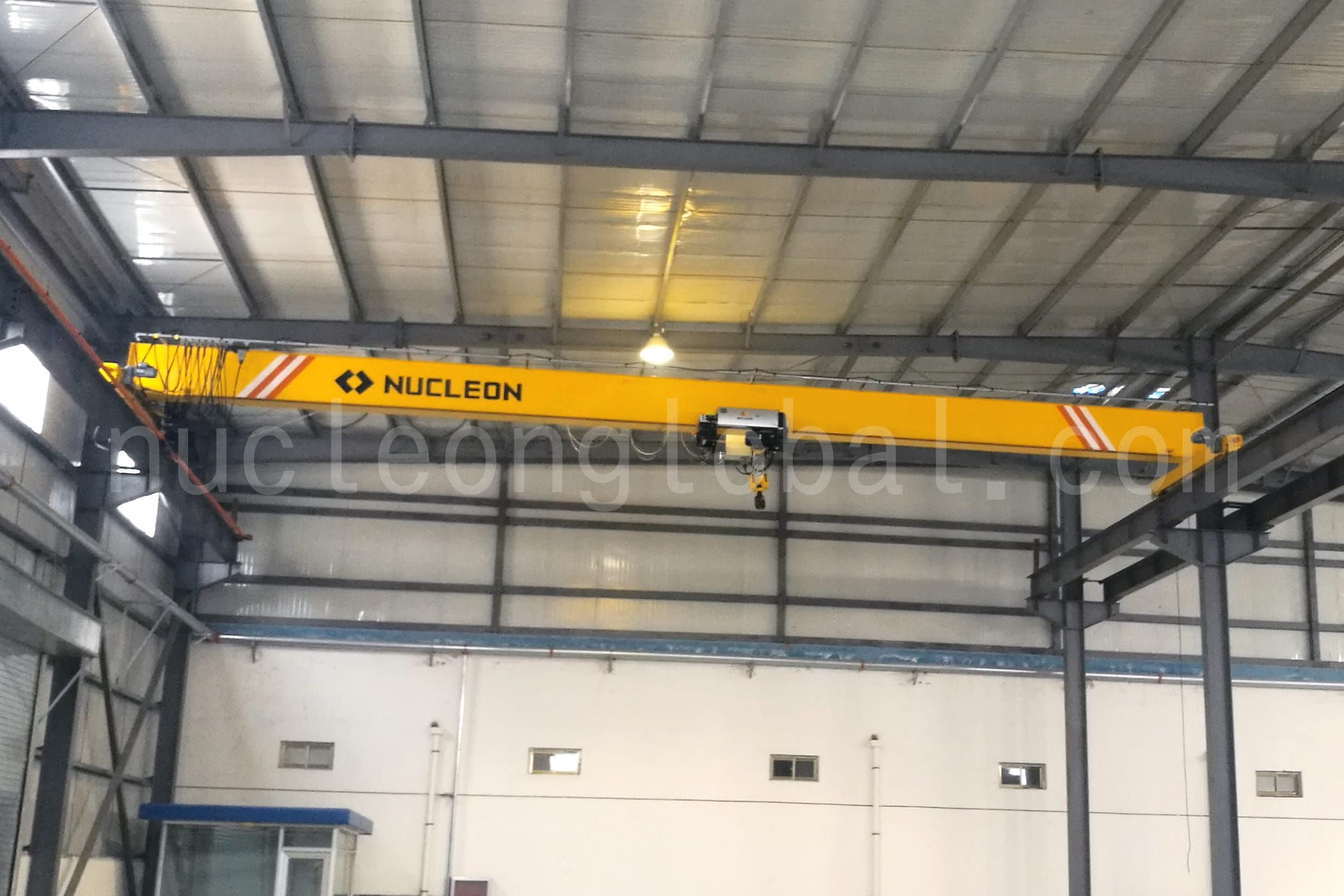

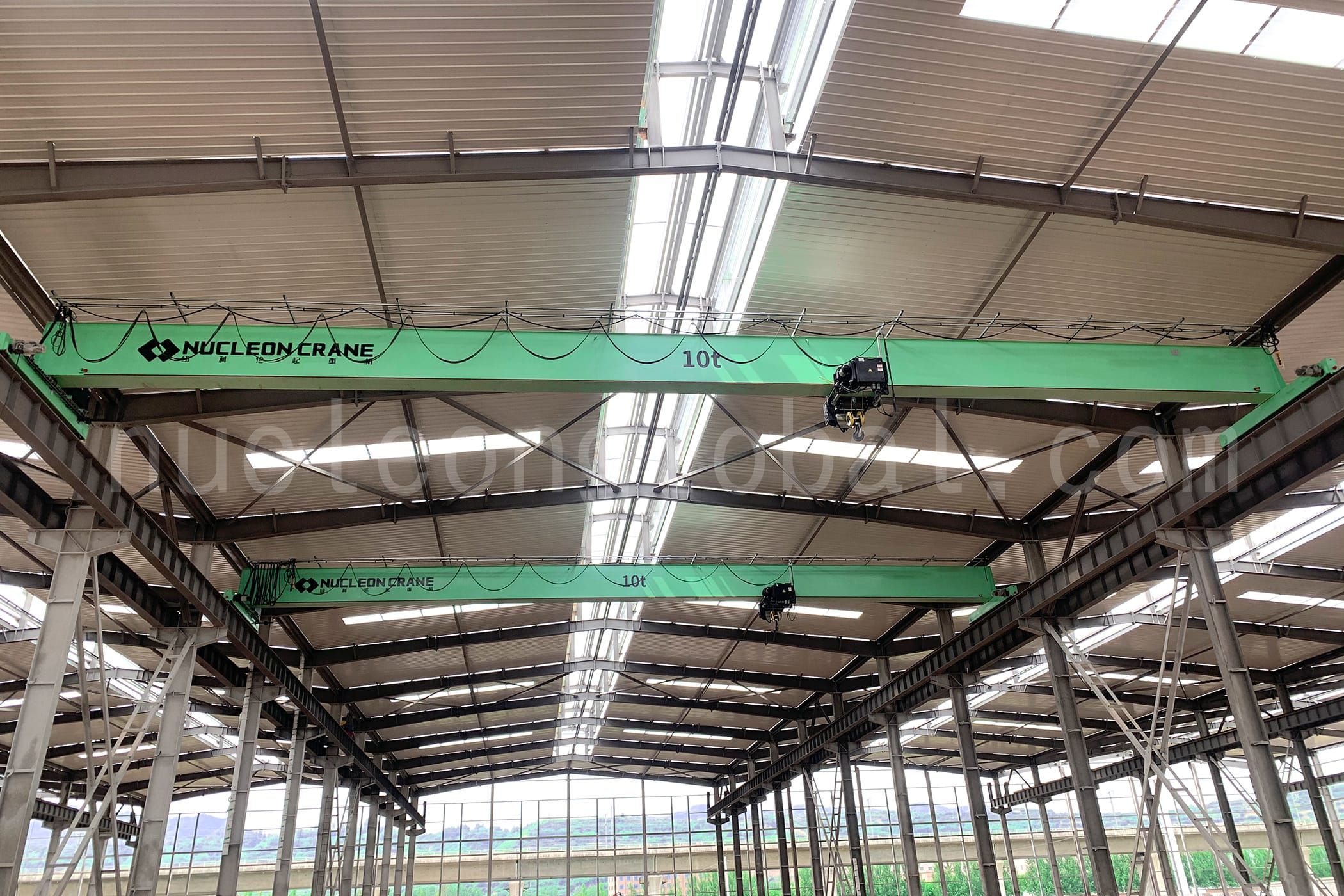

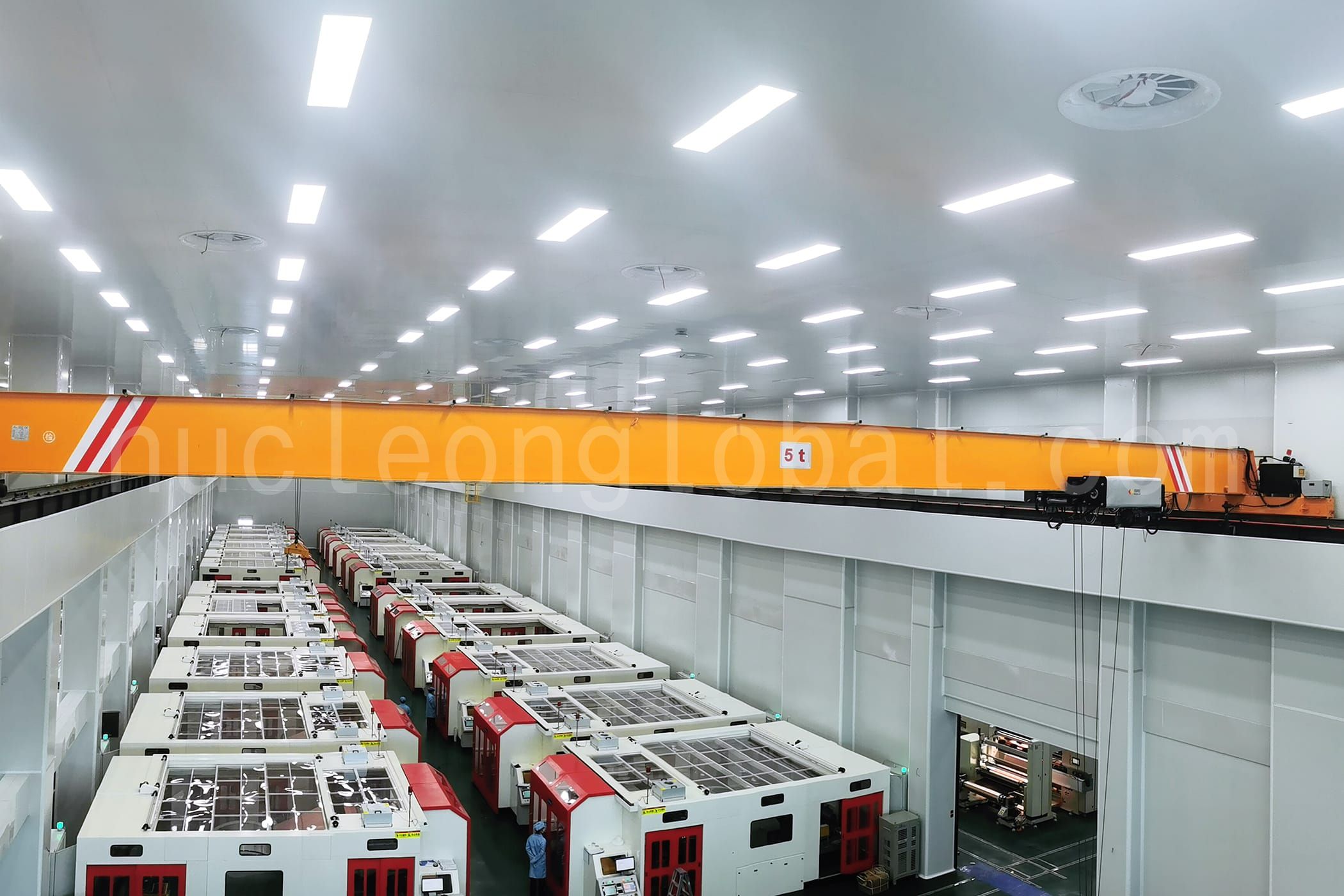

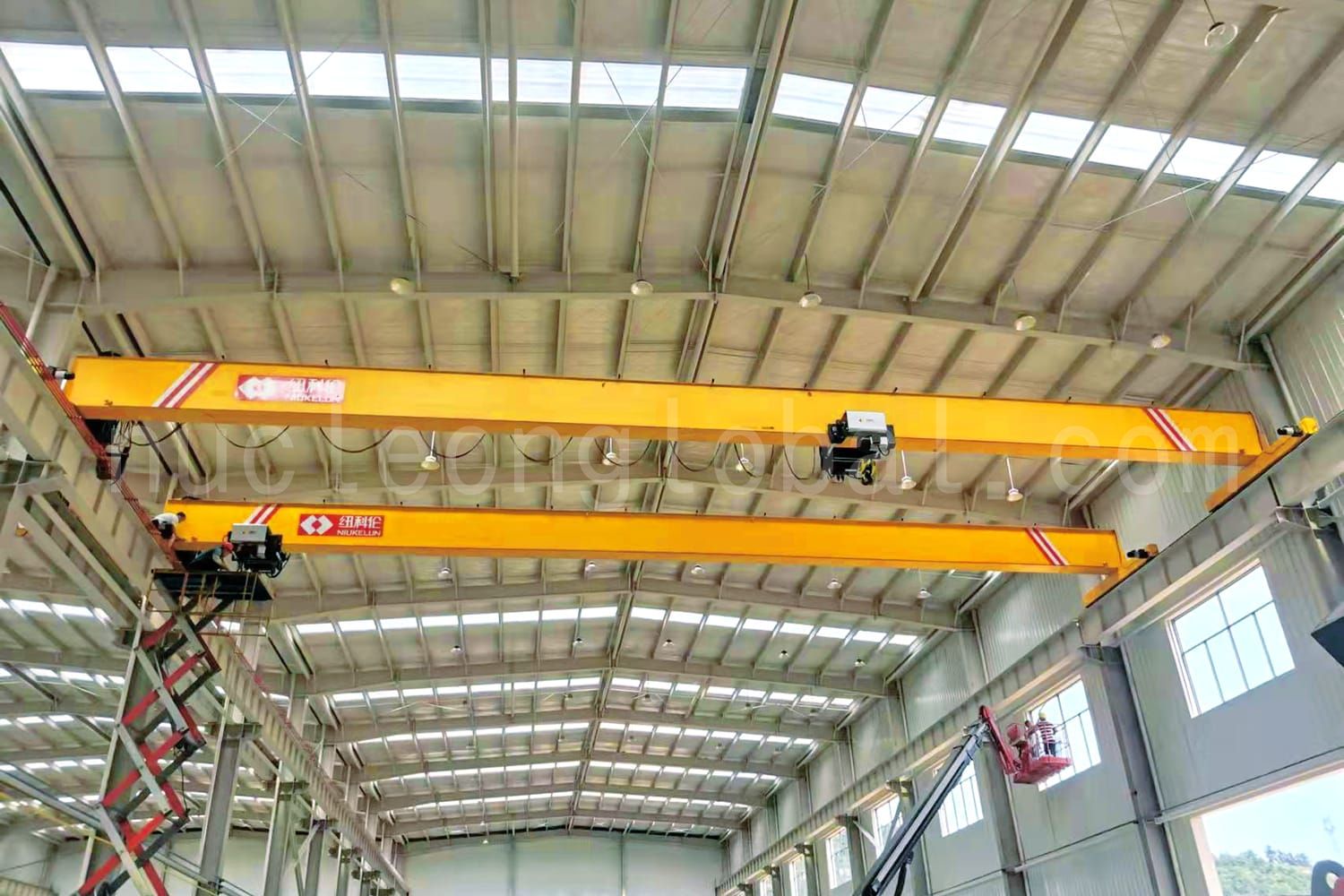

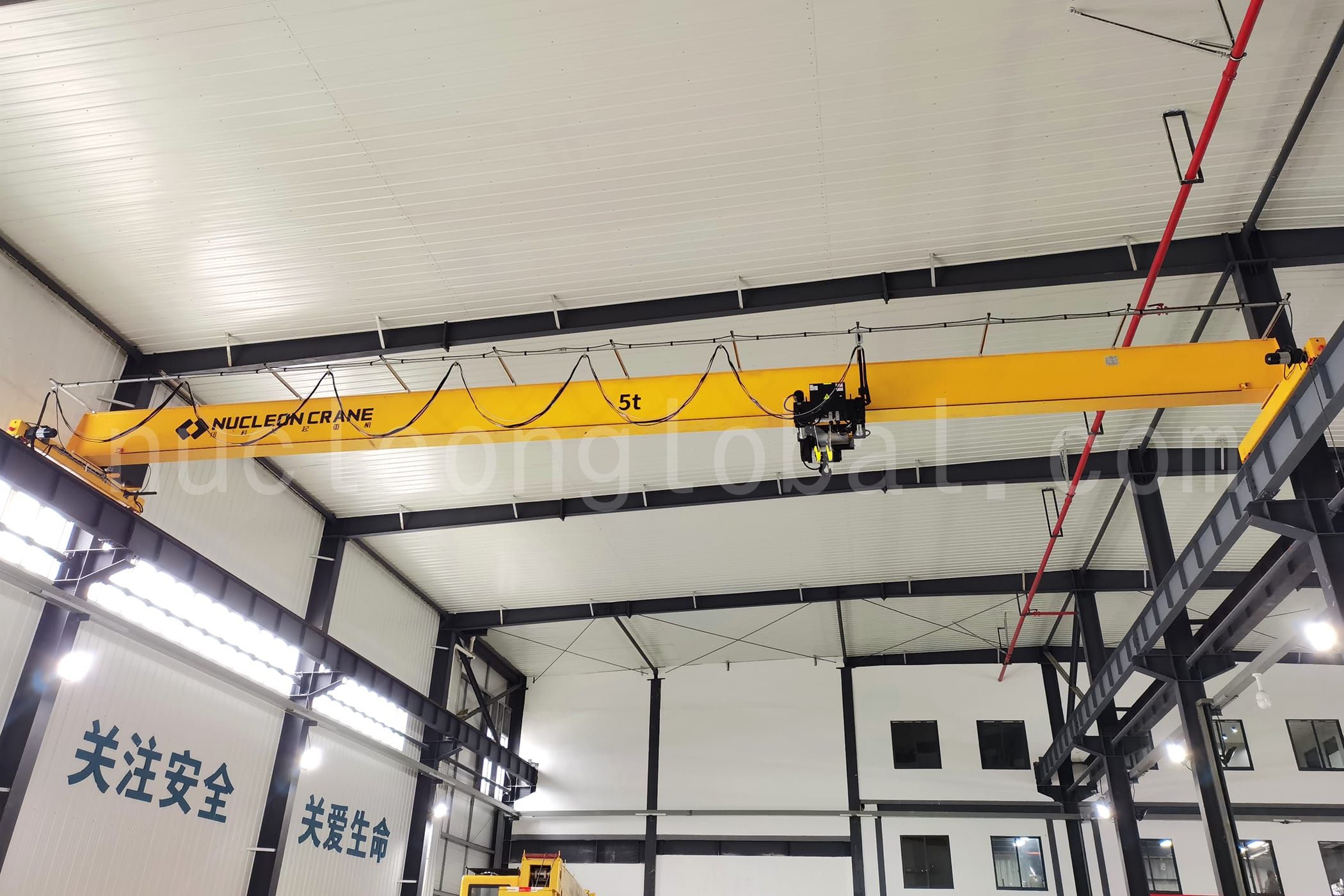

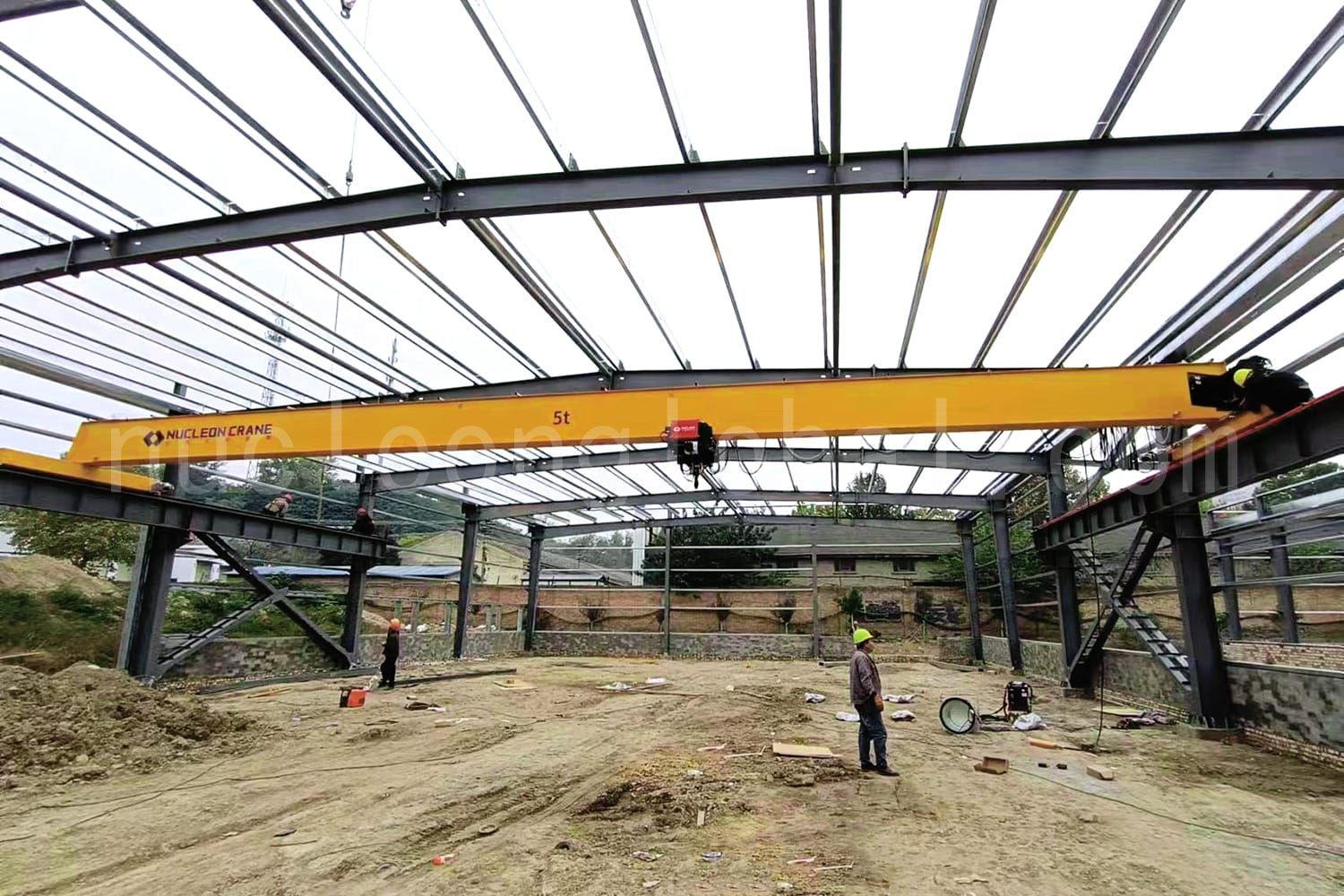

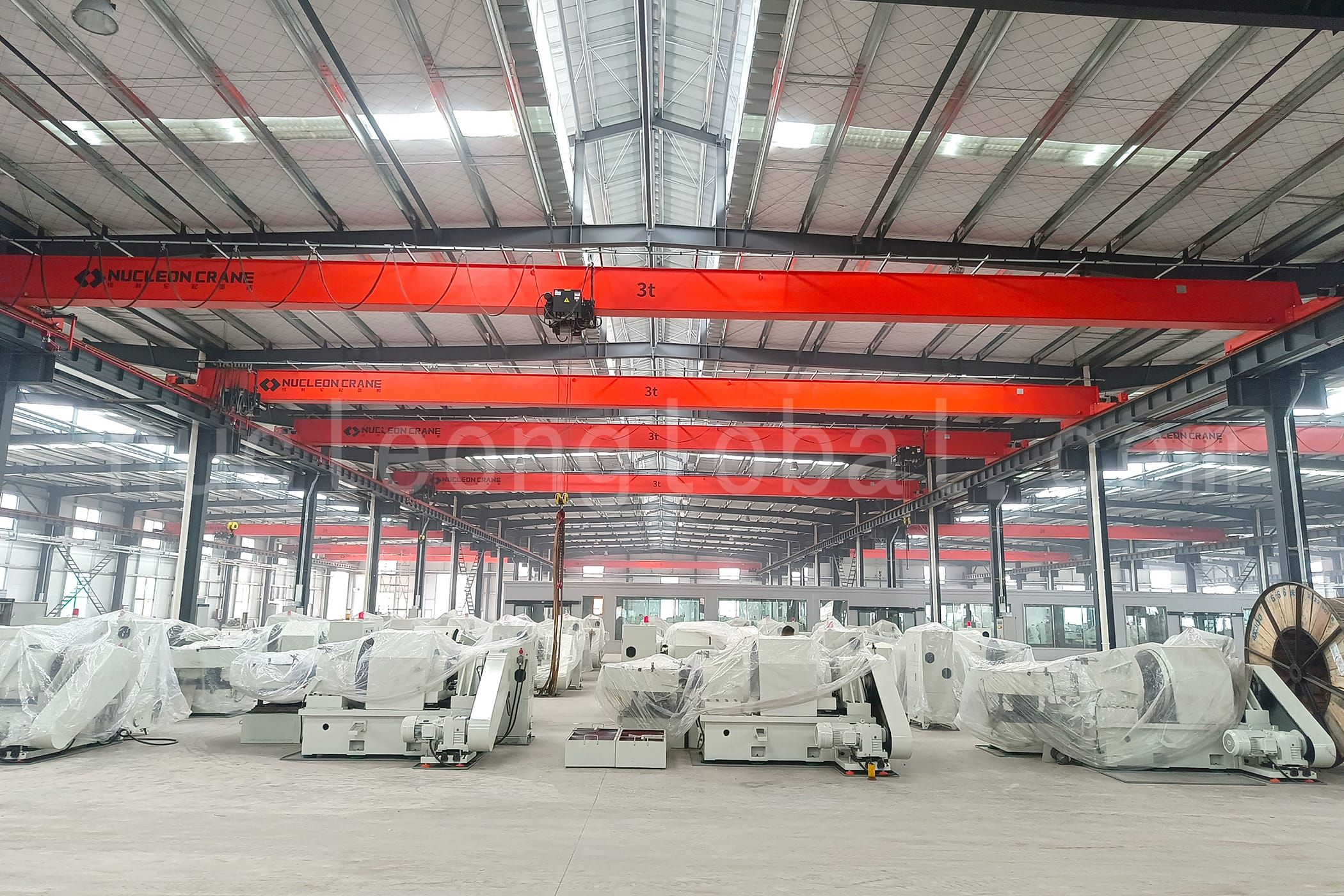

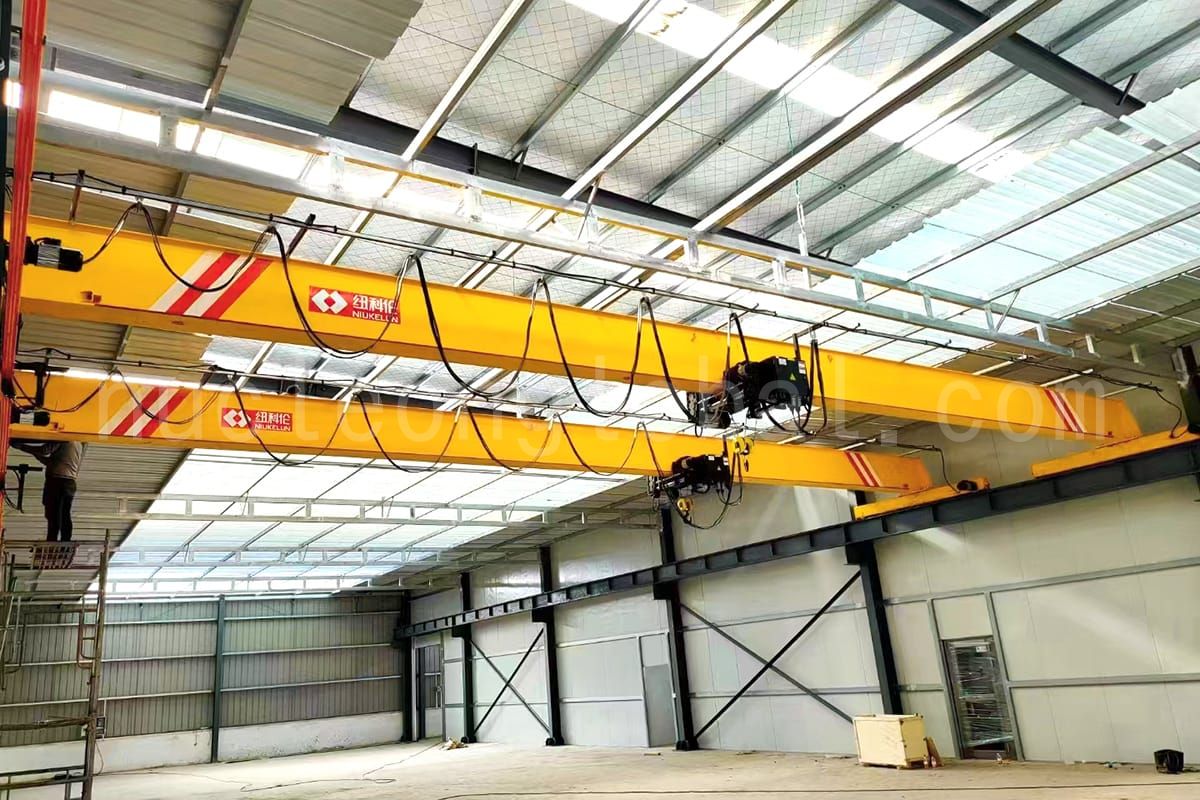

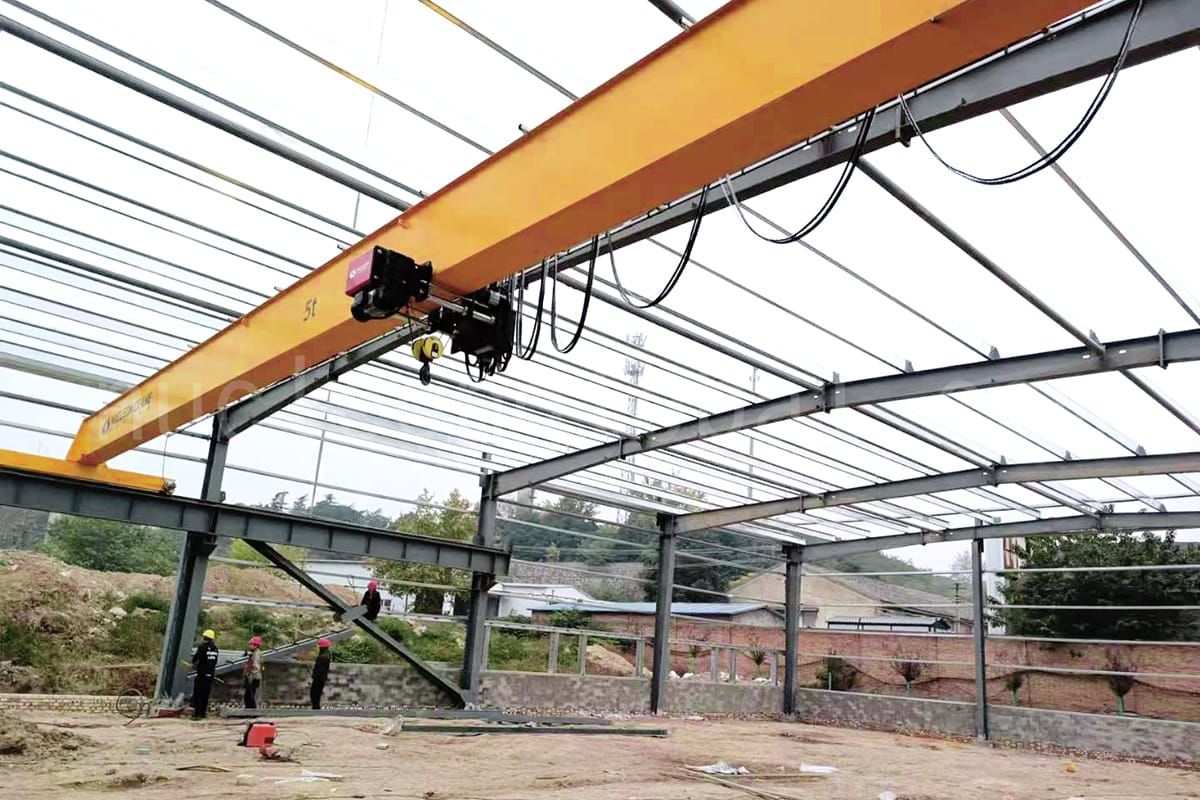

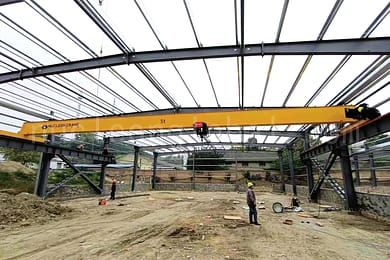

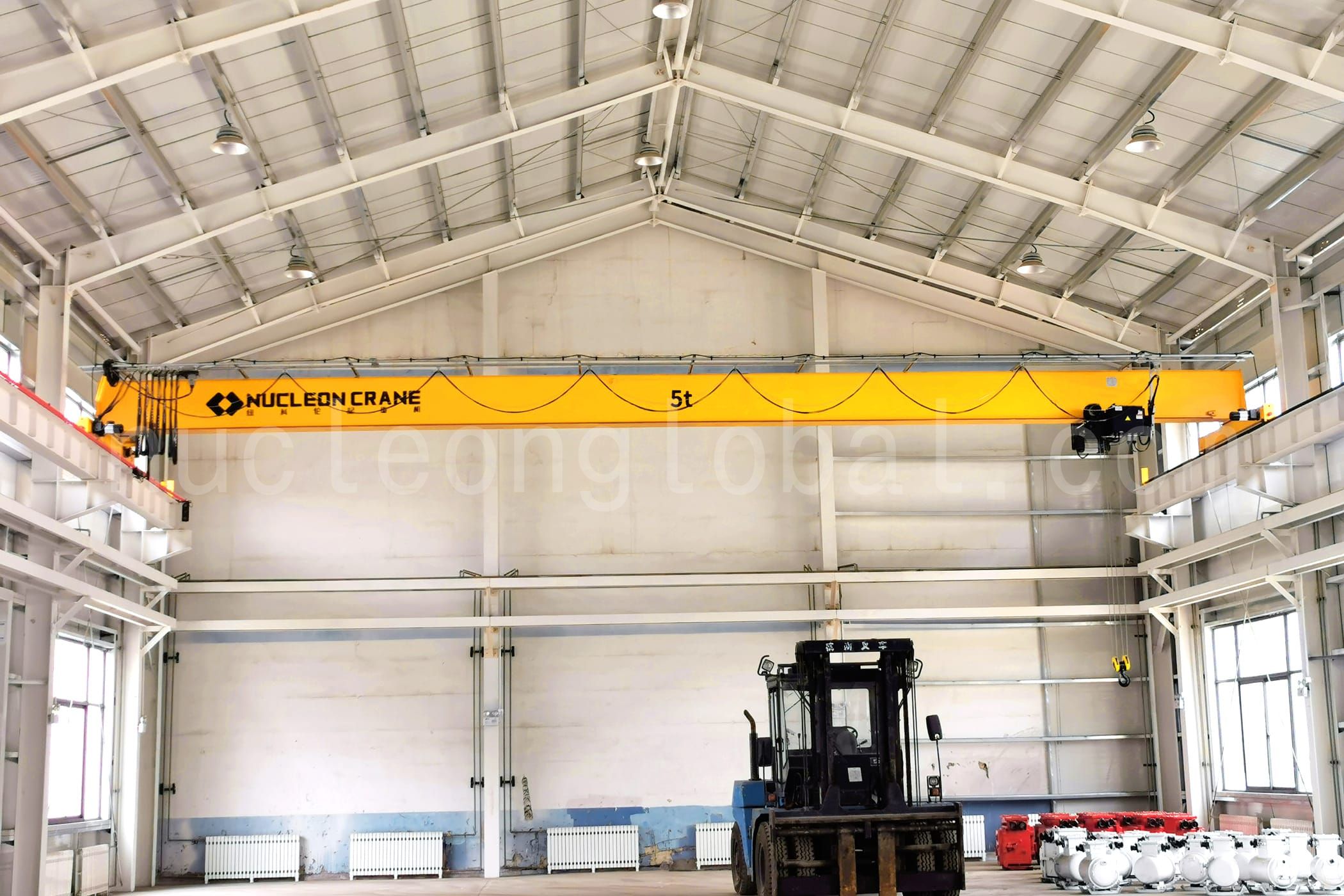

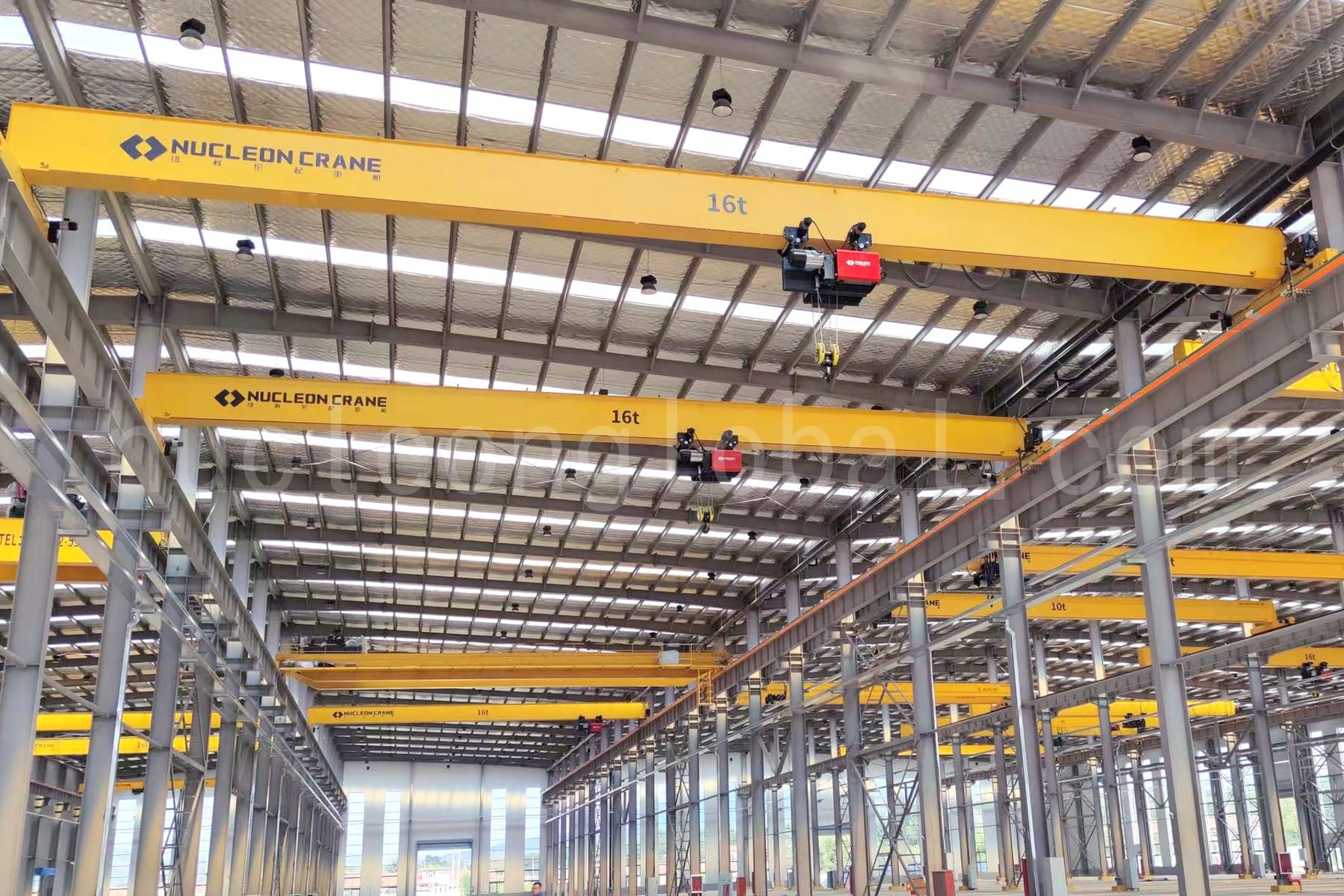

Single girder overhead crane is the Nucleon-developed single-beam product with new Chinese low-headroom electric hoist as hoisting mechanism, which has the advantages of superior performance, safety and reliability, energy-saving and high.
Electric single-beam crane adopts lightweight, modular and parametric design. Hoisting mechanism uses NR mode steel rope electric hoist with superior performance and advanced technology. Traveling mechanism of trolley is drove by three-in-one drive device and the control mechanism adopts the advanced variable frequency and speed regulation control system.
It has the advantages of superior performance, safety and reliability, energy saving and high efficiency, low noise and environmental protection, etc. It is suitable for hoisting and handling objects in workshops, warehouses and power stations.
PRODUCT FEATURESLight Weight And Modular Design
- Compact structure and small limit of size.
- Variable frequency speed regulation and stable operation.
- Complete, safe and reliable protection device.
- Integrated transmission, energy-saving and high efficiency.
- Silent drive, low noise and environmental protection.
Product AdvantagesHigh performance & Safety reliable
High Performance
- Use variable-frequency technology, run with heavy load at low and light load at high speed.
- The adjustable speed ranges in 1: 10, whlch ensures crane run steadily and reduces impact on factory building.
- Combination of swing- proof technology achieves a high accuracy position of lifting items
Safety and reliable
- It I S provided with many protections including linkage. overload protection, zero protection and limit protect ion in order to ensure reliable running of crane.
- Hoisting reel uses steel reel, steel rope has small deflection. which prevents from abrasion
- Motor of hoisting mechanism has separate air-cooling system containing thermal protection function, with protection levellP54.
- It has separate brake system which has the function of automatic abrasion compensation. If any special requirements, it can be supplied with two brake systems.
- It' s provided with advanced PLC automatic detection and friendly man-machine interface. which can perform measurement. calculation and monitoring to the performance, safety and working condition in order to ensure more safe and reliable transportation of items.
Zero Speed Hover
Ensure that the crane moves slowly and accurately as it approaches its destination.
Electric Anti-sway Function
Can automatically limit the sway of the loader in the process of handling, faster handling and more accurate positioning.
Multi-hook Coordination
Monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed.
Dead Slow
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading.
Multi-trolley Synchronization
Position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
Speed Expansion Function
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
PROJECT REFERENCES
Proven Track Record: 100,000+ Cranes Speak To Our Knowledge And Reliability

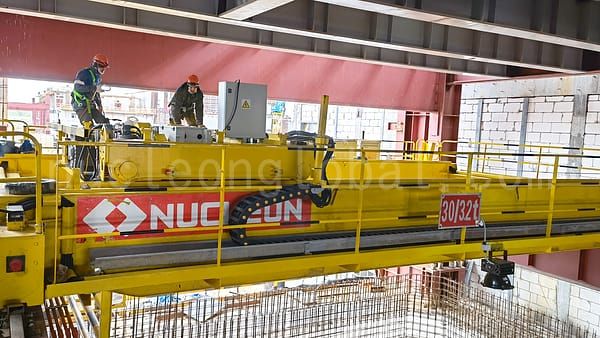

Explosion proof double girder overhead crane for nuclear power plant in Russia
- Applications: Nuclear Power Plant
- Product: Explosion-proof double girder overhead cranes
- Advantages: Enhanced Safety, Longevity and Low Maintenance
