Bidhaa mpya LDT single girder crane overhead

2024-07-13

New A5 single beam + NRS European electric hoist

Safe working load: 3T, 5T, 10T

Lifting height: 6m, 9m, 12m, 15m, 18m, 24m

Darasa la kazi: A5

Lifting speed: 5/0.8m/min

Hoist traveling speed: 20m/min

Crane traveling speed: 20m/min



In order to meet the diverse market demands and customers' high standards for product quality, Nucleon company's LDT electric single-beam crane came into being under this background. This equipment can be installed in workshops, warehouses and outdoor environments to lift various objects. It is also the most widely used lifting machinery in the machinery industry, metallurgical industry and chemical industry.



Here is the advantage for LDT design:

Configuration upgrade

-   High configuration at a low price, can be used in a higher working frequency environment;

-   The equipment uses 2160 grade high-strength galvanized steel wire rope, comes standard with new Chinese style hook, and can be used with I-beam.

Low failure rate

Comes standard with two-in-one control box. Adopts integrated design for easy maintenance and repair.

Smooth operation

-   Comes standard with hardened tooth surface three-in-one soft start reduction motor;

-   Adopts electromagnetic disc brake, stable braking and low noise.

Easy installation

-   The crane trolley is equipped with a conductive frame as standard, which is convenient for the installation of the collector;

-   All trolley driving devices are equipped with anti-fall devices, which are safe and reliable;

-   The slideway towing cable adopts a plug-in connection mechanism, which is plug-and-play on site and has high installation efficiency.



Below are the finished product pictures and crane loading pictures.

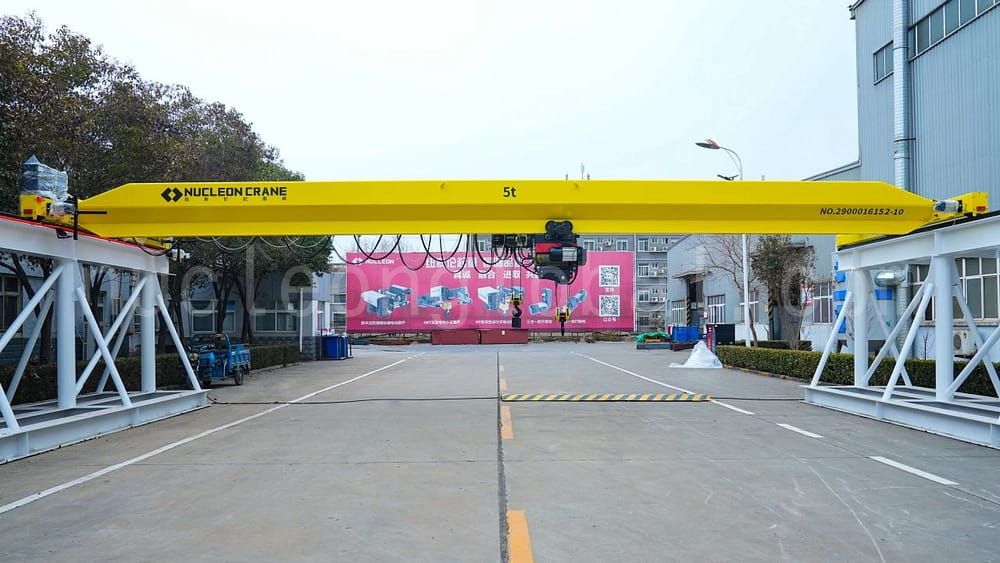

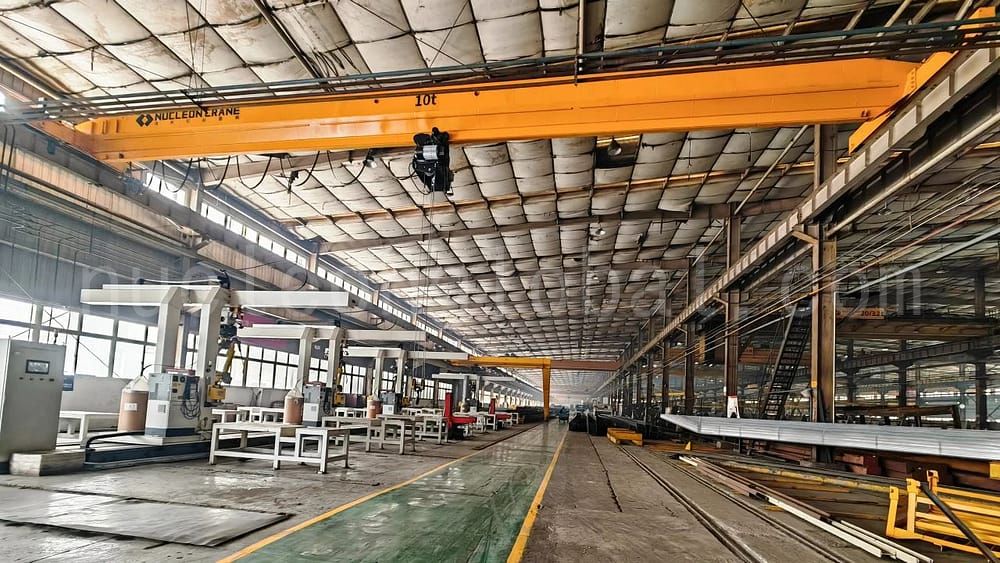

LDT Single girder overhead crane

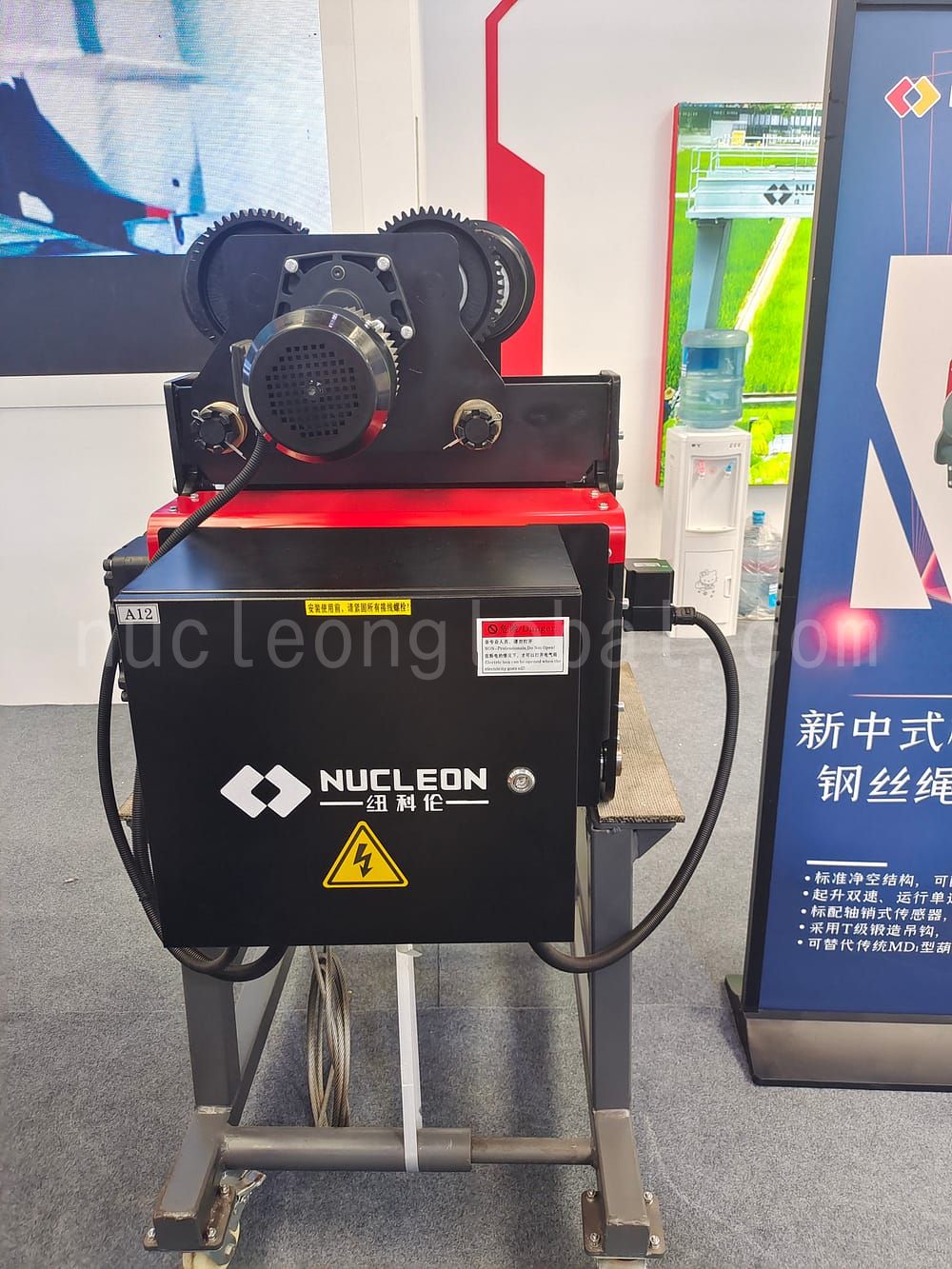

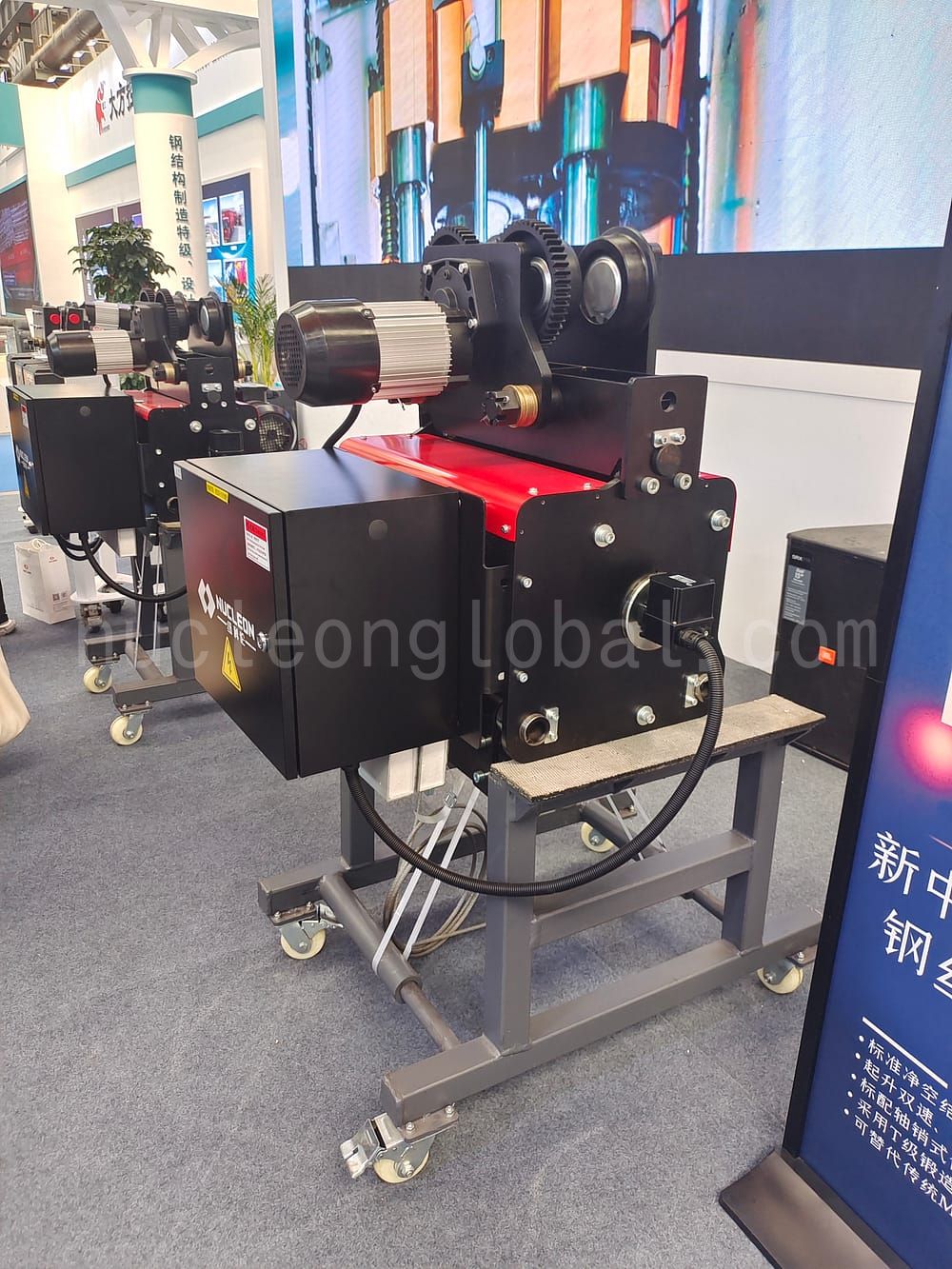

NRS Electric hoist
